Photos are illustrative. For a trailer with detailed accessories list, please send price request.

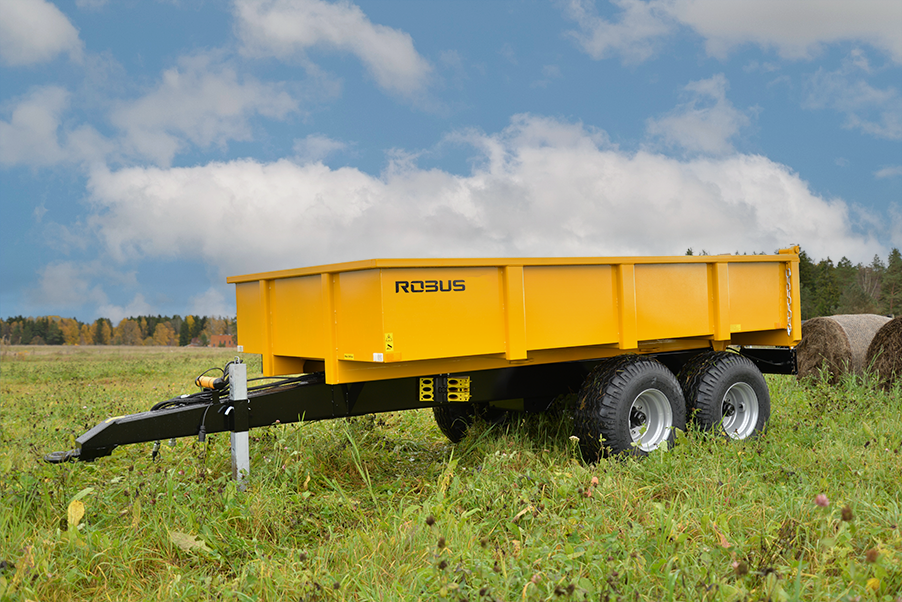

Dumper box designed to suit well for working with excavators.
| Model | RE8-04 |
| Length(mm)(With HSD01) | 5332 |
| Width(mm) | 2215 |
| Height(mm) | 1628 |
| Internal measurements of a platform(mm) | 3680x2080x550 |
| Capacitance(m3), ()-with volume backdoor | 4,2 |
| Capacitance with extensions (m3), ()-with volume backdoor | - |
| Base | 3504+950 |
| Empty weight(kg) | 1720 |
| Max load capacity(kg) | 8000 |
| Total weight(kg) | 9720 |
| Hitch load(kg) | 1600 |
| Axel sum | 2 |
| Permissible axel load(kg) | 4060 |
| Hub/axel | 70x70, 6bolts |
| Suspension | Mechanical bogie |
| Brake type | 300x90; 0, 2 or 4 brakes |
| Speed limit(km/h) | 40 |
| Hydraulic circuit working pressure of a brake(bar) | 160 |
| Working pressure of hydraulic circuit(bar) | 180-200 |
| Oil volume for tipping(L) | |
| Standard wheels | 400/60-15,5 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 4 |
| Thickness of box’s side sheet(mm) | 4 |
| Optional wheels | 400/60-15,5 |
For a trailer with detailed accessories list, please send price request.
