Photos are illustrative. For a trailer with detailed accessories list, please send price request.

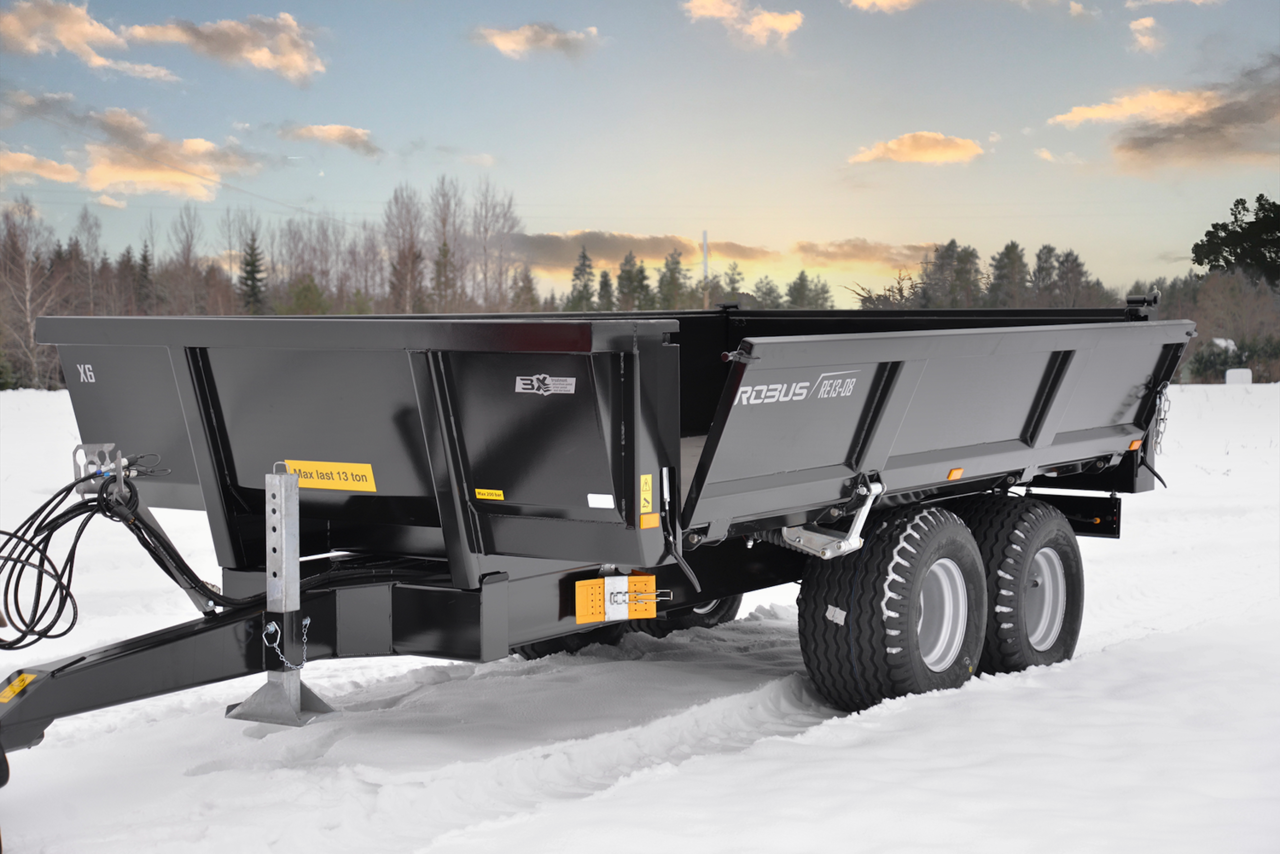

This small excavator trailer with hydraulic side panel gives more possibilities to operate smoothly on different sides of the vehicle.
| Model | RE13-08HYS |
| Length(mm) (With HSD01) | 6375(6519) |
| Width(mm) | 2550 |
| Height(mm) | 2029 |
| Internal measurements of a platform(mm) | 4670x2380x700 |
| Capacitance(m3), ()-with volume backdoor | 7,8 |
| Capacitance with extensions (m3), ()-with volume backdoor | 15,6 |
| Base | 4054+1050 |
| Empty weight(kg) | 3254 |
| Max load capacity(kg) | 13000 |
| Total weight(kg) | 16254 |
| Hitch load(kg) | 2600 |
| Axel sum | 2 |
| Permissible axel load(kg) | 6827 |
| Hub/axel | 80x80, 8 bolts |
| Suspension | Mechanical bogie |
| Brake type | 300x90; 0; 2 or 4 brakes |
| Speed limit(km/h) | 40 |
| Hydraulic circuit working pressure of a brake(bar) | 160 |
| Working pressure of hydraulic circuit(bar) | 180-200 |
| Oil volume for tipping(L) | 20 |
| Standard wheels | 500/50-17 |
| Tilt angle | 52 |
| Thickness of box’s bottom sheet(mm) | 6 |
| Thickness of box’s side sheet(mm) | 5 |
| Optional wheels | 520/50-17 |
For a trailer with detailed accessories list, please send price request.
