Strong dumper.

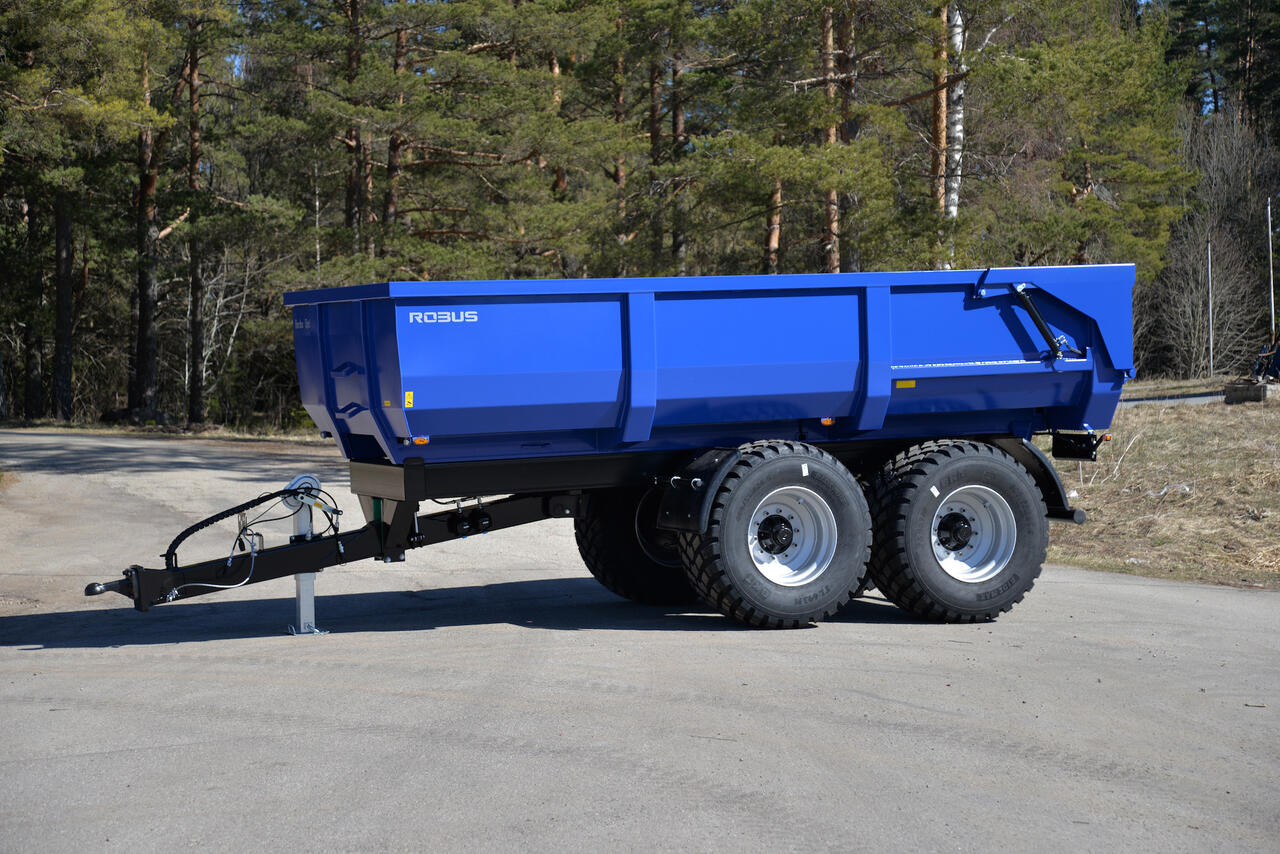

Photos are illustrative. For a trailer with detailed accessories list, please send price request.
Model | RD19-13 |
Length(mm)(With HSD01) | 7439 |
Width(mm) | 2550 |
Height(mm) | 2420 |
Internal measurements of a platform(mm) | 5530x2310x1000 |
Capacitance(m3), ()-with volume backdoor | 12,8 |
Capacitance with extensions (m3), ()-with volume backdoor | 24,3 |
Base | 4640+1350 |
Empty weight(kg) | 4600 |
Max load capacity(kg) | 19000 |
Total weight(kg) | 23600 |
Hitch load(kg) | 3500 |
Axel sum | 2 |
Permissible axel load(kg) | 10050 |
Hub/axel | 100x100, 10bolts |
Suspension | Mechanical bogie |
Brake type | 400x80(408E); 4 brakes |
Speed limit(km/h) | 40 |
Hydraulic circuit working pressure of a brake(bar) | 160 |
Working pressure of hydraulic circuit(bar) | 180-200 |
Oil volume for tipping(L) | |
Standard wheels | 600/50R-22,5 |
Tilt angle | 52 |
Thickness of box’s bottom sheet(mm) | 6 |
Thickness of box’s side sheet(mm) | 6 |
Optional wheels | 710/45-22,5 |
Photos are illustrative. For a trailer with detailed accessories list, please send price request.
